CWC reservoir storage

The Central Water Commission (CWC) publishes a storage bulletin every Thursday for India’s important reservoirs. Past bulletins are listed on its reservoir storage bulletin page. Pages 1 and 2 are a brief note; page 3 gives storage by region and page 4 by basin. From page 5, each reservoir has a row under its region and state: serial number, name, FRL and today’s level (m), live capacity at FRL and today’s live storage (BCM), the date of the reading, storage as a % of live capacity this year, last year and the 10-year average, and the benefits: the irrigated area (CCA, culturable command area, in thousand ha) and the hydel power capacity (in MW). A star before the serial number marks a reservoir with more than 60 MW of hydel capacity.

The bulletin covers the whole country. Maharashtra’s own daily dam report is Pravah.

The files are in pdfexorcist/recipes/cwc_reservoirs/: recipe.toml and cwc_reservoirs.py. The fixture is the whole bulletin of 1 February 2018, in tests/fixtures/cwc/.

The recipe

name = "CWC reservoir storage"

[engines]
ocr = false

[parser]
type = "custom"
function = "cwc_reservoirs.py:parse"
key = ["page", "id", "col"]

# the printed total for all reservoirs = the sum of the rows
[[checks]]
column = "id"
rule = "total = rest"
by = ["col"]
where = "col in ['live_cap', 'live']"
abs_tolerance = 0.0015

# this year's % = 100 * live / live capacity, rounded to a whole number
[[checks]]
function = "cwc_reservoirs.py:pct_of_live"

[output]
layout = "table"
rows = ["reservoir"]
columns = "col"
format = "csv"

id is the reservoir’s name in lower case with spaces and punctuation dropped. The printed name, region, state and the hydel star are extra columns. The total row is TOTAL FOR 91 RESERVOIRS with the PERCENTAGE line below it.

Run it

pdfexorcist extract https://cwc.gov.in/sites/default/files/01.02.2018cwcbull.pdf --recipe cwc_reservoirs -o cwc.csv

✓ pdftotext   1,006 readings  0.0s
✓ pdfplumber  1,006 readings  0.8s
✓ pymupdf     1,006 readings  0.1s
✓ camelot     1,006 readings  3.3s
✓ pdfium      1,006 readings  0.1s

✓  Agreed        1,006  100.0% of cells
   Unresolved        0
✓  Checks      2 rules  all passed

   Wrote   cwc.csv  92 rows, table layout

reservoir,region,state,hydel,sr,frl,level,live_cap,live,date,pct,pct_last_year,pct_avg10,cca,hydel_mw
GOBIND SAGAR(BHAKRA),NORTHERN,HIMACHAL PRADESH,*,1,512.06,491.78,6.229,3.113,01-02-2018,50,33,48,676,1200
PONG DAM,NORTHERN,HIMACHAL PRADESH,*,2,423.67,405.91,6.157,2.305,01-02-2018,37,35,38,-,360
...
ALMATTI,SOUTHERN,KARNATAKA,*,78,519.60,514.73,3.105,1.372,01-02-2018,44,22,33,@,290
...
SHOLAYAR,SOUTHERN,TAMIL NADU,*,91,1002.79,958.25,0.143,0.000,31-01-2018,0,0,15,-,95
TOTAL,,,,,,,161.993,69.887,,43,48,47,,

On the fixture:

pdfexorcist extract tests/fixtures/cwc/cwc_2018-02-01.pdf --recipe cwc_reservoirs

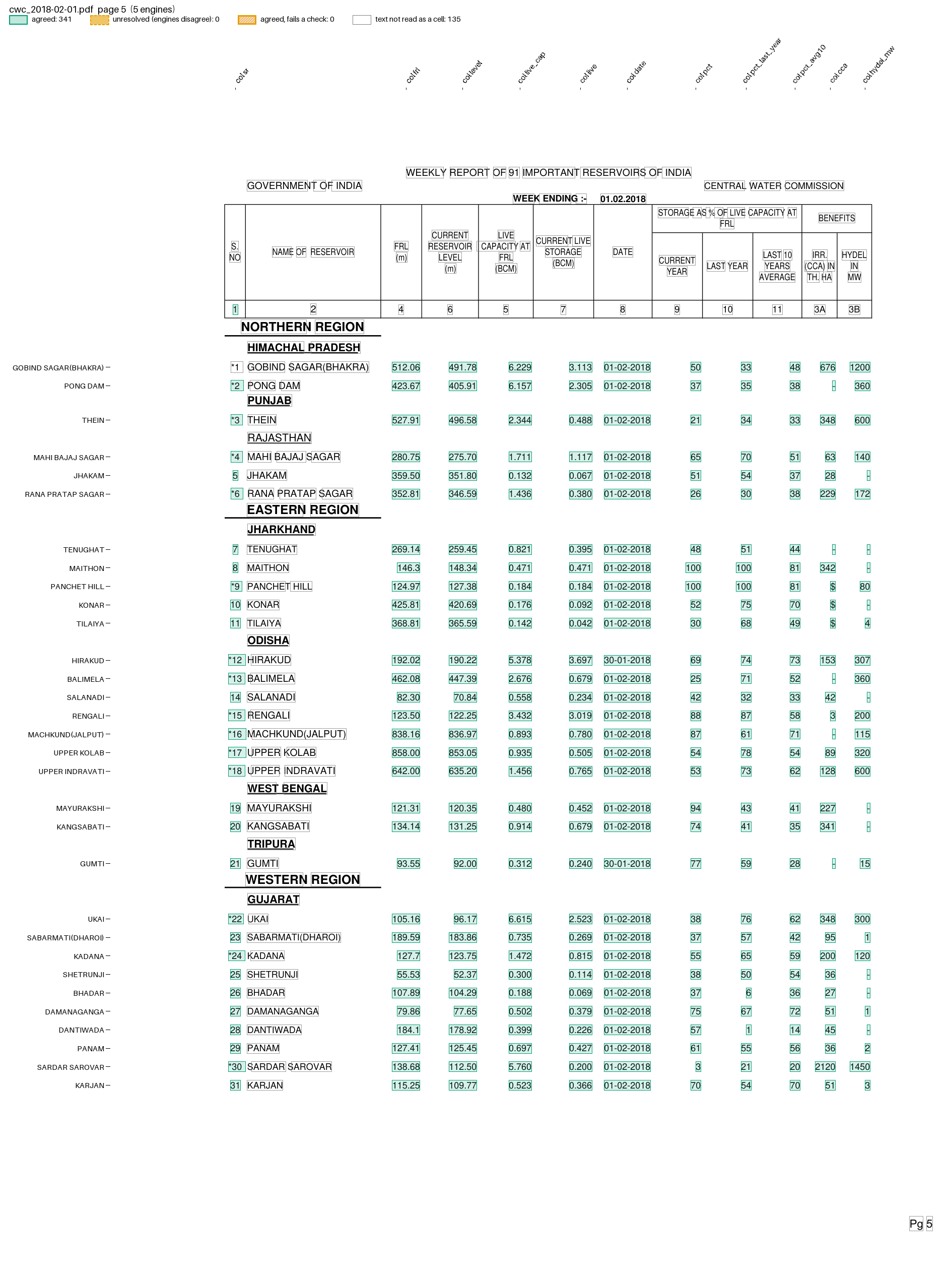

pdfexorcist show tests/fixtures/cwc/cwc_2018-02-01.pdf --recipe cwc_reservoirs --page 5 -o page.png draws what the recipe reads:

CWC bulletin page 5: a row per reservoir under region and state headings

The parser

parse() in cwc_reservoirs.py, in outline (pseudocode):

def parse(pages):
    for page_no, lines in pages:
        skip the header, down to the column numbers "1 2 4 6 5 7 8 9 10 11 3A 3B"
        for line in lines:
            a star, serial, name, 4 numbers, a date, 3 percentages, CCA, MW -> a reservoir row
            "TOTAL FOR 91 RESERVOIRS" and 2 numbers                      -> the total capacity and storage
            "PERCENTAGE" and 3 numbers                                   -> the total's percentages; stop
            a line without digits ending in "REGION"                     -> the region
            any other line without digits                                -> the state
        each reservoir: yield {"page", "id", "col": sr ... hydel_mw, "value",
                               "reservoir", "region", "state", "hydel"} for each value

The region and state carry over to the next page.

What is unusual

  • The column numbers under the header run 1, 2, 4, 6, 5, 7, … 11, 3A, 3B: the benefits (column 3) are printed last.

  • Some CCA cells hold a footnote mark: $ for the DVC system (Panchet Hill, Konar, Tilaiya), @ for Almatti with Narayanpur, # for Aliyar with Parambikulam. The recipe keeps the mark as printed.

  • Each reservoir has its own reading date; on the 1 February 2018 bulletin they run from 24 January (Jayakwadi) to 1 February.

  • State headings are printed as on the page: A.P & TG, CHHATTIS GARH, UTTRAKHAND.

  • Maithon and Panchet Hill are above FRL, at 100%.

tests/test_cwc_reservoirs.py runs the recipe on the fixture and compares every value with tests/fixtures/cwc/expected.csv, which was read from pdftotext -layout without the pipeline.
